上价为一支电子管的价格.274bn+   1250元一个，274b 茄子胆 800元一个。

Classification-Dome-type bulb of glass, a four-prong bayonet pin tube,comprises to oxide coated filamentary diode units with a common filament.
Application-It is designed to supply direct current up to 200 milliamperes from an alternating current source.
Dimensions-Dimensions, outline diagrams of the tube and bases, and the arrangement of electrode connections to the base terminals are shown in Figures 1, 2.

Nominal operating conditions and parametersFilament voltage………………………………………………………………5.0 V*
Nominal filament current……………………………………………………4.0A

Choke-Input filterR-M-S Alternating voltage prelate …………………………………550V
Tolal rectified current………………………………………………200 mA

Condenser-Input Filter
R-M-S Alternating voltage prelate…………………………………………450V
Tolal rectified current………………………………………………………180mA

*Alternating-current filament supply or Direct-current filament supply.

Characteristics-Average characteristics

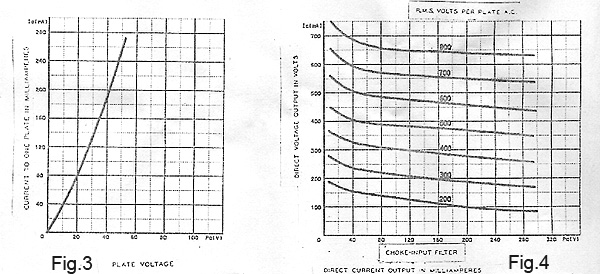

The current-voltage characteristic of a single diode untie of the 274A/B/+ tube is shown in Figure 3.Direct-voltage output characteristics are given in Figures 4 and 6.The characteristics of figure 4 are for a choke-input filter such as is shown in circuit A and those of Figure 5 are for a condenser-input filter such as is shown in circuit B

Limiting Operation Conditions for Sate Operation:

Choke-input Filter:

Condenser-input Filter:

I.Max.R-M-S Alternating Voltage per plate…………………………450 V
I.Max. Total Rectified Current……………………………………….200mA

*4uF.Maximum filter input capacitance
